ZowieBox 4K NDI Video Streaming Encoder,Decoder and Recorder

In stock - 100 items available
SKU: 30621-102
Regular price $350.00
You can contact us for your orders and questions. +90543 456 2614
All your orders are sent by fast air cargo with UPS or DHL Shipping
Your orders will be prepared and shipped within 3 business days.
Customs clearance in your country is not the seller's responsibility.

New Gen of Encoder/Decorder

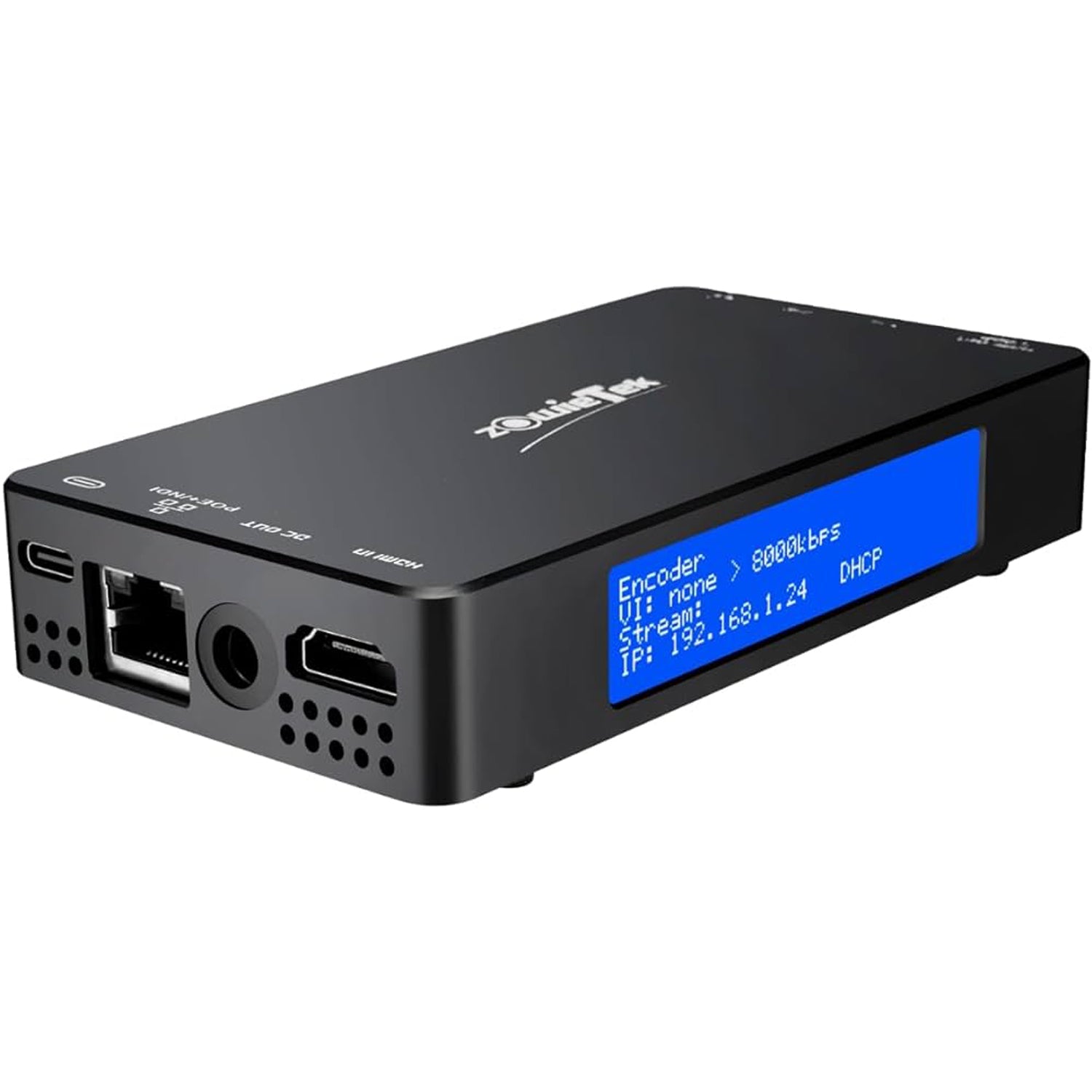

ZowieBox is a new generation of hardware encoder/decoder in a small aluminum box, and an ultra-compact video streaming encoder and decoder with 4K Ultra HD video. In addition, it features NDI®| HX3, PoE, a standard tripod mount and a big distinct tally light. What’s more, it is cost-effective and user-friendly.
ZowieBox supports popular USB Type-C charger, WIFI, hotspot, DC output and a range of innovative modern features. It is a standalone streaming encoder without a PC, which is a flexible and affordable solution to stream high-quality video over a network for system integrators, streaming professionals, and OEM partners.

Zero-lag passthrough

ZowieBox can capture your game in 4K with zero passthrough, and it can convert RGB, YCbCr 444/422 into a universal live broadcast format. This allows ZowieBox to support various computer monitors with HDMI video output, in addition, pass-through video can maintain the original video quality.
ZowieBox supports HDCP input, no need to set up on the game console.
ZowieBox can support up to 1080p120 or 4K60 and it can downsize 1080p120 or 4K60 to 1080p60, and can also live stream and record 1080p60 videos while playing games. 1080p60 is the most widely used live broadcast resolution.

Standalone streaming without PC and capture card

ZowieBox is a professional-grade live broadcast device, especially suitable for independent game video live broadcasts. ZowieBox won’t cause any FPS issues like frame lag, skipped or dropped frames while live streaming and recording gameplay on PC, MAC, mobile and consoles.

Without a PC and capture card, the game can be directly broadcast through the gigabit network. At the same time, NDI game videos are also shared on the LAN.


Gaming playing and streaming in real-time

NDI’s low-latency and high-definition connectivity technology is perfect for multiple gaming industry applications from a streamer’s home setup to a global e-sports championship live stream. Through NDI, users can directly send audio and video to OBS, vMix for live broadcast, and each PC could be the monitor without any capture card and cable connection.

Easily join the NDI world

NDI offers the most flexible and efficient formats, enabling any production to set up workflows easily. The high-quality and ultra-low-latency of NDI®| HX3 are even better than USB capture. The decoding capability of ZowieBox is an easy way to distribute streaming video or NDI® | HX3 on the network, decode and route to HDMI, then output to a screen or project.


Convert any HDMI video to NDI video

ZowieBox can be flexibly mounted on any SLR camera using a ¼-unc standard tripod. Any existing video signal, such as a professional camera or HDMI monitor, can be converted into a real-time, low-latency, high-quality IP video stream that supports NDI.

Mobile phone screens only require a simple USB C to HDMI adapter cable, and mobile games can also be captured via ZowieBox.


Powerful encoding and decoding

ZowieBox can encode formats such as H.264 HP/MP/BP, H.265/HEVC MP, NDI, NDI|HX2 and NDI|HX3 as well as SRT, RTMP, RTMPS or RTSP protocols whose bitrate could be up to 50 Mbit/sec. Simultaneously it can directly push streams to multi-platforms such as Facebook, Twitch and YouTube, without a PC. Alternatively, these IP streams could decoder into high-quality HDMI outputs.

Flexible recording and display

ZowieBox supports streaming and recording simultaneously, with a video frame rate of up to 60fps and a 24-frame movie frame rate. The input can be recorded as files to TF card or USB storage or NAS. The front mini screen can display current settings and working status in real time. If you have unlimited storage space, you can also choose the next-generation HEVC format for archiving and editing.

Simple operation and easy setup

Browser-based GUI, you can control it via computer, phone, iPad, WiFi or hotspot. As long as the user’s mobile phone, computer and ZowieBox are in the same network, they can log in to the control interface without an IP address. In addition, users can find ZowieBox in the same network segment on the configuration interface and control it with one click.

PTZ control

ZowieBox can control the camera via USB to serial RS232/485/422. Converting your camera to a network camera by operating it online.

Multi charger with DC out

ZowieBox can be powered by PoE up to 100 meters away. Alternatively, it can also be powered by a USB-C charger, USB-C power bank, or regular DC power adapter in any voltage between 5 to 20V with DC to USB-C adapter. ZowieBox also features DC out that can deliver 12V DC power up to 12W to power external equipment like PTZ camera, monitor and so on. Moreover, its USB port can also deliver power up to 5W.

Unlimited transmission

Through ZowieBox, any video signal from computers, cameras, etc. can be remotely transmitted to the remote end, and the transmission delay in the Local Area Network is only 100ms; the Network can support long-distance, point-to-point transmission through protocols such as SRT or RTMP.

Build-in tally

ZowieBox includes a built-in large Tally display for your on-air talent to easily see which camera is live, synchronize with OBS, Vmix and NDI, then respond to PGM and PVW.

Specifications

Power Input USB TYPE C, 25W above, Up to 20V 1A, 20W up with DC Adapter, PoE+(802.3at), CAT5e above
Consumption ~10W Max (Without DC Out)
Output 12V 1A DC Max with current limit
Video Video Encoder H.264 HP/MP/BP, H.265 MP
Resolution

4K2160p25/30, 1080p25/30/50/60,

Encoder/Decoder

1080i50/60, 720p50/60,

For both video Input & Output

Loop through* Up to 4K60, 1080p120Hz, HDR10 & Dolby
HDCP 1.4/2.2/2.3
Frame Rate 24/25/30fps, 50/60fps for 1080/720p
Codec H.264/H.265
Rate Control CBR/VBR
Live Preview Web, HDMI loop through and output
*Resolution above 4K30 will be automatically down scaled for streaming
Network LAN 100/1000Mbps Gigabit
WIFI 802.11a/b/g/n/ac, Dual Band
Bluetooth V5.0
WEB http, https
Streaming Streaming In RTSP/RTMP(s)/SRT
Streaming Decoder

RTMP(s)/SRT/RTP/UDP/RTSP/TCP/HTTP(s),

 *SRT caller only

Bit Rate Max. 50mbits/s, adjustable
NDI® Encoder NDI® | HX3/HX2/HX
NDI® Decoder NDI® | HX3/HX2/HX
NDI Audio Direct Audio over NDI
Recorder mp4, mov, ts
Rotation 0/90/180/270n°, native vertical streaming
Main Video Stream Up to 4K30
Secondary Stream Up to 720p
Audio Sampling 32, 44.1, 48KHz
Encoder AAC, MP3, 16bit
Bitrate 32-192kbps
Channel Dual, AGC
Input 0.7VRMS, 20Kohm
Output 16ohm, 30mW
Source HDMI Embedded, Line In
Input/Output HDMI In 1.4b/2.0b, RGB/YCbCr 444/422/420
HDMI Loop out 2.0, up 4K60
HDMI Out 1.4b, up to 4K30
NDI NDI® | HX3/HX2/HX (NDI 5.5 upgradeable)
Configuration Display Dot Matrix, COG
Setting Mobile Phone, Pad, PC, RESTFUL
OSD Text, Logo Caption, Time Stamp, WYSIWYG
PTZ Interface RS232/485/422 via USB dongle*
Protocol Pelco D/P, VISCA
Tally Tally Auto/Manual
Software Firmware Upgradeable, Linux OS
Interface HDMI Input 1 x TYPE A, Receptacle, 1.4b
HDMI Loop Out 1 x TYPE A, Receptacle(Mux), 2.0b
HDMI Output 1 x TYPE A, Receptacle(Mux), 1.4b
Audio In 1 x 3.5mm TRS Jack
Audio Out 1 x 3.5mm TRS Jack
Network 1 x RJ45, Gigabit, PoE
USB 1 x USB, TYPE A
Visible 1 x RGB LED Panel, 1 x LCD
Storage Internal 1 x MicroSD/TF, USB
Network NAS
Disk Format FAT32 up to 2T, exFAT
*All storage media not included
Physical Size 123 x 68 x 22mm(4.8″ x 2.7″ x 0.9″)
Weight 166g(5.9oz) Black aluminum
Operating 0°C to 45°C(32°F to 113°F)
Storage -20°C to 60°C(-4°F to 140°F)
Tripod 1/4” – 20UNC
Certification CE, FCC
