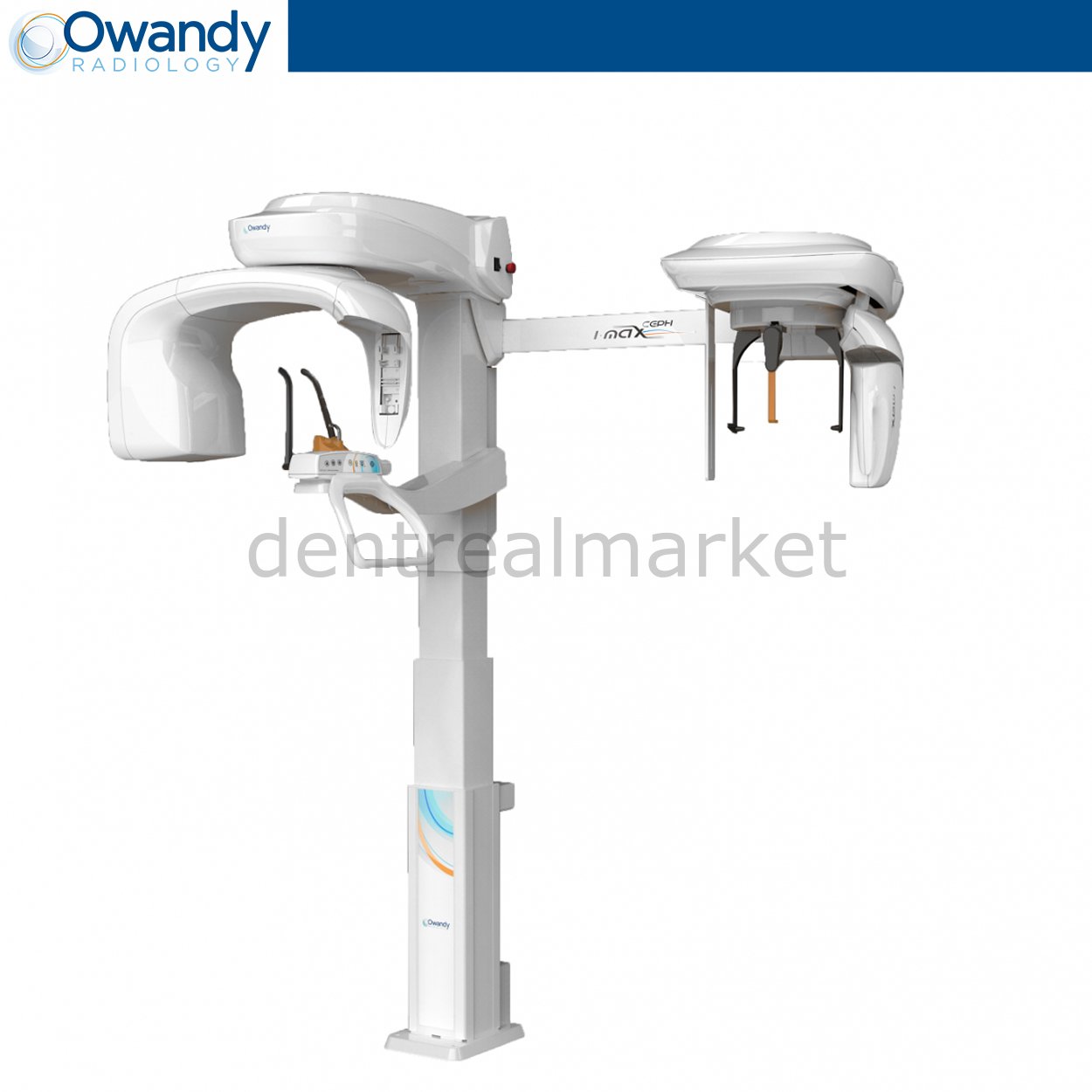

Owandy I-Max Ceph Panoramic & Cephalometric X-Ray — Wall-Mounted
Regular price
$30,240.00
Couldn't load pickup availability
You can contact us for your orders and questions. +90543 456 2614
All your orders are sent by fast air cargo with UPS or DHL Shipping
Your orders will be prepared and shipped within 3 business days.
Customs clearance in your country is not the seller's responsibility.
Owandy I-Max Ceph Panoramic & Cephalometric X-Ray — Wall-Mounted
Next-generation wall-mounted digital panoramic unit covering adult/child panoramic, TMJ, maxillary sinus, and specialized projections including bite-wing.
Origin: France. Warranty: 2 years on assembly/factory defects; 5 years on sensor and tube. Free installation and nationwide shipping (Turkey); free software upgrades.
Face-to-face patient positioning supports easy operation. Wall mounting saves space; suitable for wheelchair patients. Vertical travel on a telescopic column. QuickVision patient tracking and 2D imaging software adjusts ideal dose from entered patient data.
Technical highlights
- Power: 110–120 V / 220 V, 60/70 Hz
- Panoramic sensor: CCD; pixel size 48 µm; grayscale 12-bit (4096)
- Scan time: adult panoramic 13 s; child 7.7 s
- Programs: half panoramic (L/R), orthogonal panoramic, low-dose panoramic, frontal dentition, bite-wing (L/R/both)
- Rotation angle: 240°; tube 60–70 kVp / 2–7.1 mA; focal spot 0.5 mm (EN 60336)
- Positioning: standing / wheelchair / seated when needed
