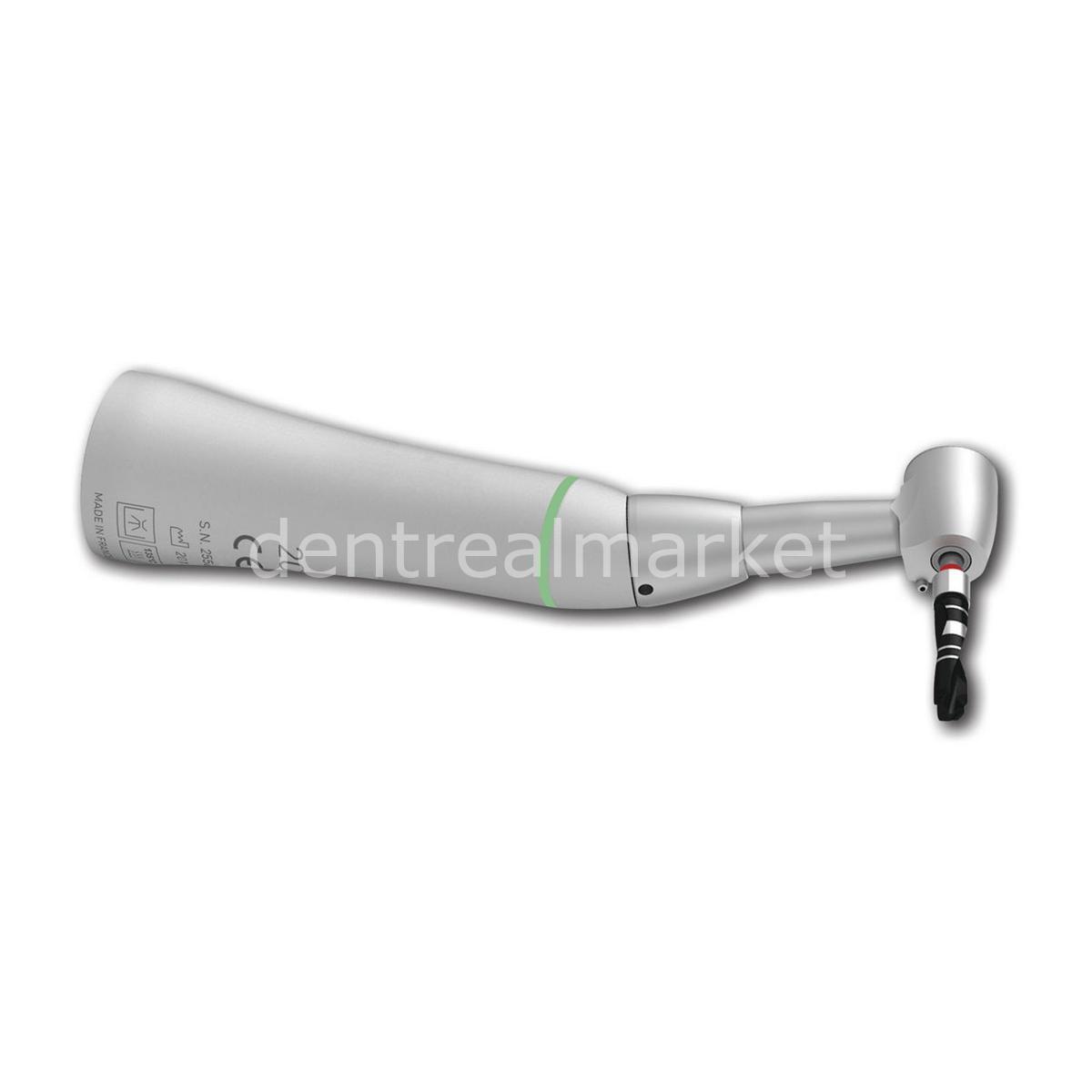

BA International PowerSurge Implant Contra-Angle 20:1 (BA660074)
Couldn't load pickup availability
IMPLANT 20:1 PowerSurge implant contra-angle
IMPLANT 20:1 — powerful down to the smallest detail. Handpieces used in surgery and implantology meet sophisticated demands that arise from the need for special precision. Thanks to its robust gearing, IMPLANT 20:1 can reach up to 70 Ncm — the torque required for all drilling and shaping applications and precise work.
IMPLANT 20:1 — specialist for surgery and implantology.
- Designed specifically for implantology and surgery
- High flexibility
- Internal and external spray
- Easily disassembled without any tools
- ISO interface allows free choice of micromotor
- Extremely versatile
IMPLANT 20:1 is suitable for all implant and surgical applications: from alveolar crest correction to implant seating. The choice between internal and external spray, together with the ISO interface, lets you use IMPLANT 20:1 flexibly as needed. Because the handpiece can be dismantled without tools, it is easy to clean, sterilizable and heat-disinfectable: simply unscrew the outer parts and remove the drive.
Developed for precise work
With durable gears and 70 N torque, IMPLANT 20:1 can reach a maximum speed of 2,000 rpm. The small head provides the best possible view of the preparation site for better results. For use with an electric motor or at 40,000 rpm motor speed.
Technical data
- Weight: 72 g
- Reduction ratio: 20:1
- Max. operating speed: 2,000 rpm
- Max. torque: 70 Ncm
- Head height without bur: 13.8 mm
- Head diameter: 10.3 mm
- Bur mechanism: Ø 2.35 mm
- Cooling: CA internal cooling
- Chuck system: push button
- Motor interface: ISO
- REF: 60 43 702
Together with an electric motor or at 40,000 rpm motor speed.
