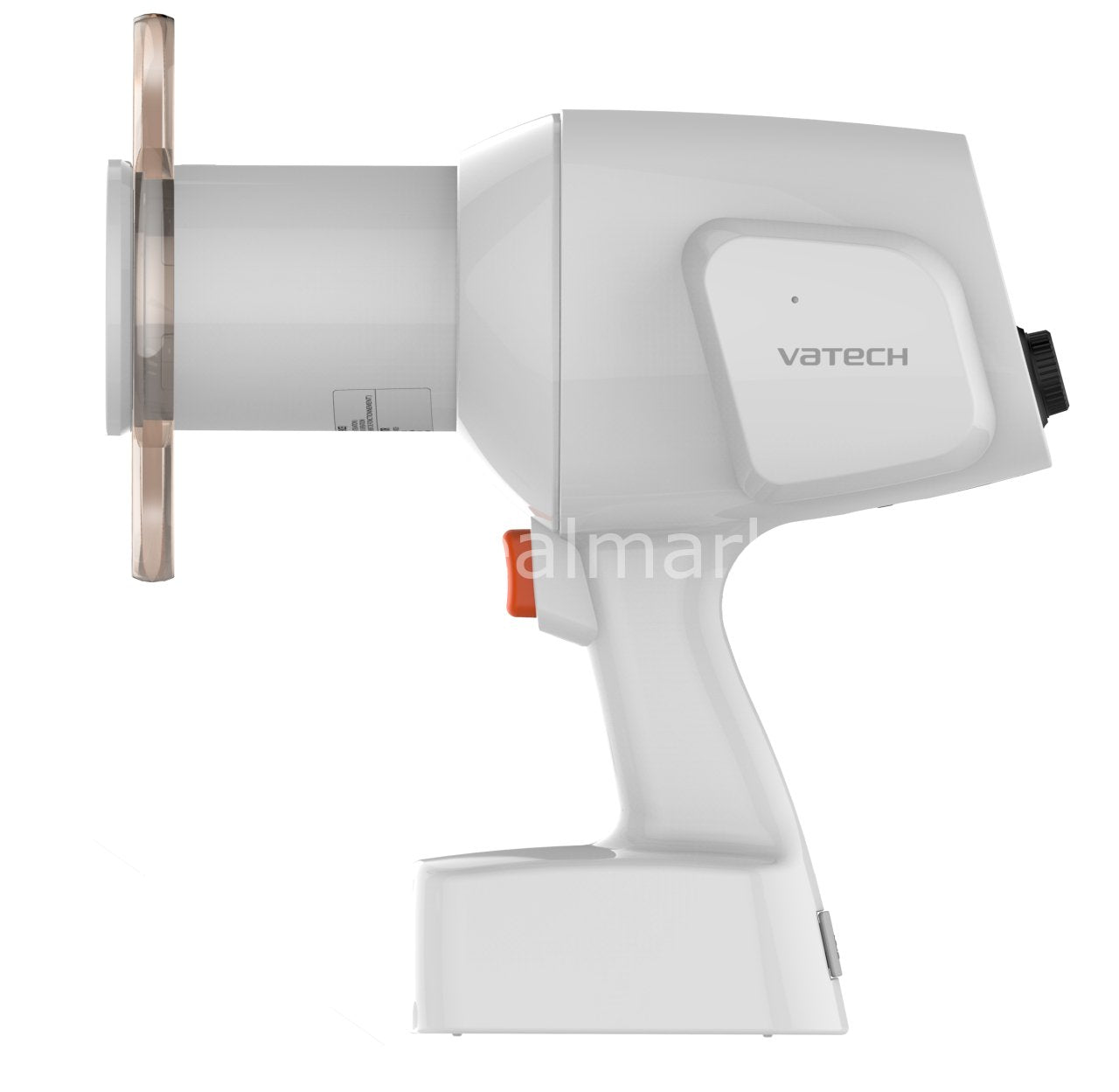

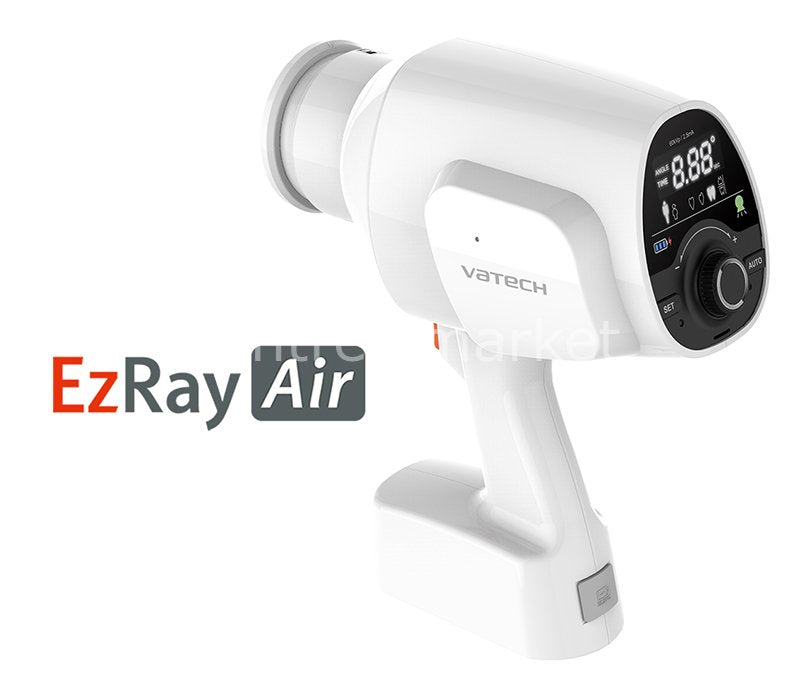

Vatech EzRay P Air Portable X-Ray

EzRay P Air portable X-ray

This modern, handheld radiation-protective device enables fast, comfortable imaging with digital sensors and phosphor plates, saving time. Long battery life and a spare battery allow uninterrupted operation, making the device ideal for safe mobile use in clinics, hospitals and home-care services.

Key features

• Portable and practical: Safe mobile use in clinics, hospitals and home-care services
• Radiation protection system: 0.5 mm Pb equivalent fixed backscatter shield
• Wireless, battery operation: Nominal 22.2 V Li-polymer battery (1.25 Ah); approximately 100 exposures at an average 1-second exposure
• LCD control panel: User-selectable preset exposure times

Technical specifications

• Dimensions: 27 cm length × 25 cm height × 15 cm width
• Total weight: 2.5 kg
• Battery weight: 64 g
• Exposure times: 0.02–1.00 seconds
• Anode voltage: 60 kV, true DC
• Anode current: 2.5 mA
• Focal spot / resolution: 0.4 mm / 10 lp/mm
• Inherent filtration: 1.5 mm Al equivalent
• Image distance: Device-to-skin distance: 20 cm
• X-ray field: 60 mm round / 30 mm × 40 mm rectangular collimation

This portable device delivers high-quality images quickly and reliably, offering ease of use and flexibility in digital dental radiography.
